Applications

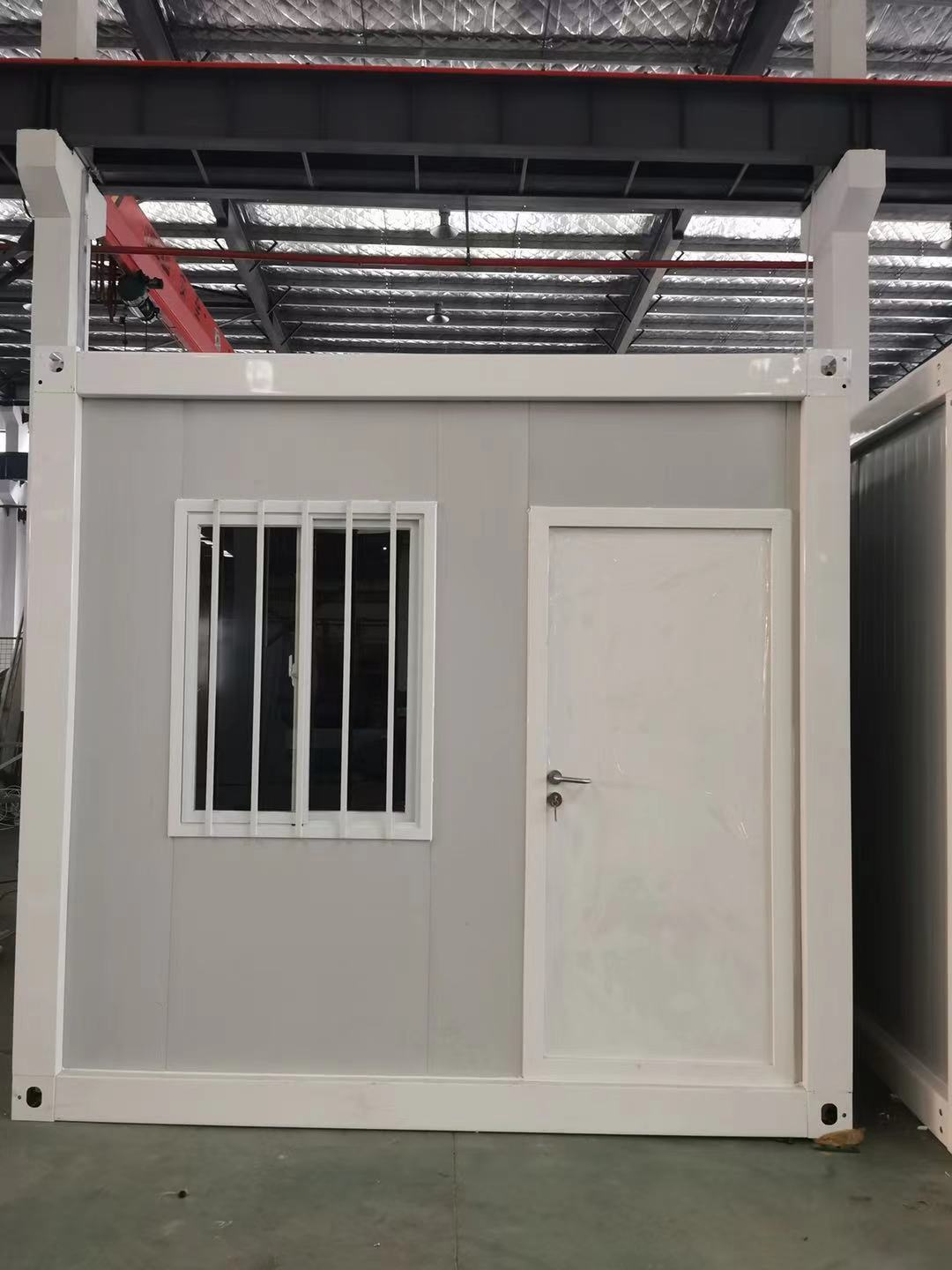

Popular Door for Flat Pack Container Apartments and Modified Shipping Container Offices etc.
Features
* Pre-hung design saves labor cost
* Electrostatic powder coating finish guarantee the quality in harsh environment
* Honeycomb paper core make door light and easy for transportable
* Timber blocks are fitted inside of door leaf to meet lock and hinges
* Lock hole prepared with security handle lock
Technical Specifications
*The door assembly is ready for installation into an existing opening.
Door Leaf Size:
Single Door Size (mm) - 2035H x 840W x 50T
Double Door Size (mm) - 2035H x 1600W x 50T
*Customized sizes are available.
Opening Direction:
Reversible design for both right hand & left-hand choice.
Door Core:
Polystyrene panel/PU foam/
High quality honeycomb paper/Fireproof rock wool
Steel sheet:
0.6mm Galvanized steel sheet materials with high-quality powder coating finish
Door Frame:
*. Frame made of 1.2mm thick galvanized steel sheet with fixing holes for prefabricated building.
*. Frame consists of two parts (internal & external frame) to adjust different wall thickness.
Weather sealing:
Sealing all-round the external frame with EPDM flexible seal to keep dust and rain.
Hardware:
*304 type stainless steel hinges, can be powder coated same as door color
*Lock hole prepared for spherical lock/lever handle lock with 70mm backset
*Heavy duty commercial grade overhead door closers are optional.
*Panic exist device is optional.
Package:
*Economic and popular carton package for end customers-160 pieces per 20ft container, 380pcs for 40HQ.
*Luxury pallet package for distributors-150 pieces for 20ft container, 320pieces for 40HQ.
