Product Show

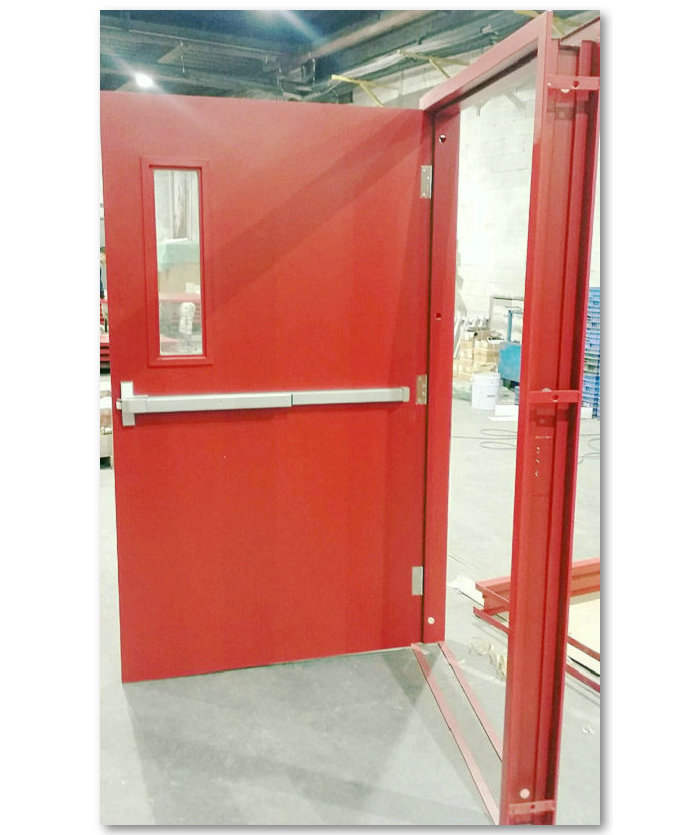

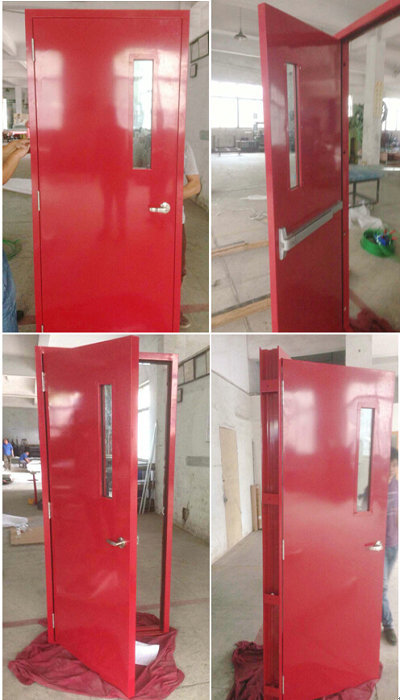

UL Certificate Fire Door for Emergency Exit
Product Numbers:CHAM-ULSD001
Product description:UL Fire Door
Fire Rating: 1-3 hour
Door Leaf: Galvanized Steel 1.0 mm,insulation - Perlite
Door Frame: Galvanizing steel 1.5 mm
Surface Finish: Powder Coated in RAL color
Hinge: 3 S.S hinge
Door Closer: (optional)
Vision Panel: Fire Rated glass 200*600*10mm(Optional)
INTRODUCTION:
UL Fire Rated Steel Door for Fire Escape Passage
Powder Coating Metal Entrance Door
All-round fire and smoke prevention expansion seal
Key Specifications:
1. Powder coating finish
2. Door leaf thickness: 45/50/52mm
3. Steel sheet of door leaf: 0.8-1.0mm cold rolled steel sheet
4. Steel sheet of door frame: 1. 5-2.0mm cold rolled steel sheet
5. Filling material: Aluminum silicate infill or rock wool OR Honeycomb paper
6. Lock: Fire rated lock
7. Diversified designs and colours are available
8. Hinges: 3 Stainless steel hinges (external hinge, opening 180 degrees) or 3 galvanized
steel hinges (interior hinge, opening 90 degrees)
4.5"x4.5"x3.4mm stainless steel hinge w/2 ball bearings
9. Threshold: Stainless steel threshold
10. Standard size: 2050*960mm, 2050*860mm (including the frame)
11. Accessories: Hinges, fire locks, handles, fireproof rubber seal, installing bolts
12. Weight: 80-100KGS/pc
13. Opening direction: Left/right hand, inward/outward
14. Packing: Plastic bag+ carton
15. Container capacity: 95-110pcs/20ft, 190-210pcs/40GP, 220-240pcs/ 40HQ
16. Certificate passed: UL Certificate,SGS, ISO9001: 2000, CE
