Metal door for transportable building

Pre-hung door assembly for transportable buildings *Easy Installation *Save Labor Cost

Metal door for transportable building

UL Certified Fire rated door for Factories &Commercial buildings

Fireproof door is special for commercial buildings or applications which needs fire protecting doors in emergency gate.

UL Certified Fire rated door for Factories &Commercial buildings

Double Steel Door is for Industrial buildings

Double Steel Door is designed to be a better Industrial buildings. Popular choice for warehouse, escape passage, apartment buildings etc.

Double Steel Door is for Industrial buildings

PA Door for Modified Container Houses

Popular choice for applications like transportable buildings, modular house,site office, cabins,warehouses,accommodation, hire buildings etc metal clad buildings

PA Door for Modified Container Houses

Wooden door for Hotels & Rooms

Good choice for Room entrance and Hotel main doors

Wooden door for Hotels & Rooms

Product Show

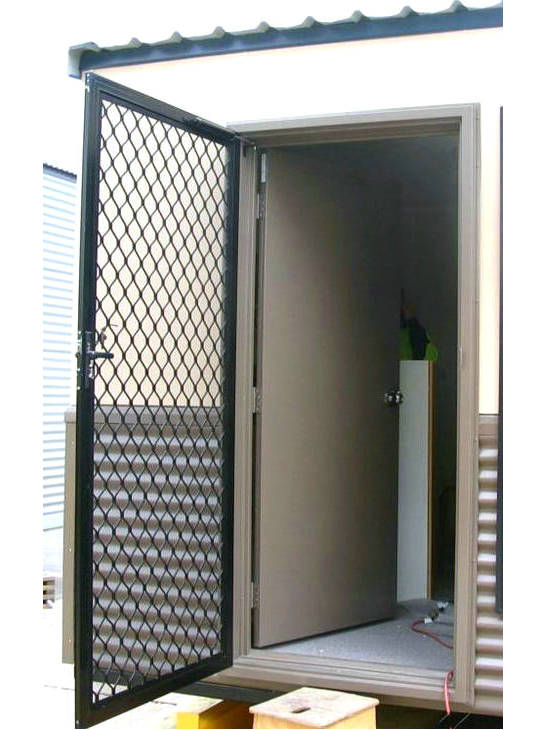

Internal door with outward screen door

Product Numbers:CHAM-IDSSD001

Product description:Internal opening door with outward security screen door-double security

INTRODUCTION:

Applications
Double Indemnity choice for transportable buildings, modular houses, prefabricated buildings and concrete buildings etc.

Features
* Pre-hung design to save labour cost
* Electrostatic powder coating finish guarantee the quality in harsh environment
* EPS/PU Foam infilling make door excellent in thermal and acoustic performance
* Timber blocks are fitted inside of door leaf to meet lock, hinges and door closer
* Lock holeprepared

Technical Specifications
*The door assembly is ready for installation into an existing opening.
Door Leaf Size:
Single Door Size (mm) – 2040H x 820/870/920W x 35T
*Customized sizes are available.
Opening Direction:
Reversible & wheelchair design for both right hand & left hand & disabled choice.
Door Core:
Polystyrene panel/PU foam/High quality honeycomb paper/Rock wool
Steel sheet:
Galvanized steel sheet materials with high-quality powder coating finish
Door Frame:
*. Frame made of 1.4-2.0mm thick galvanized steel sheet with fixing holes for prefabricated building
*. Frame consists of two parts (internal & external frame) to adjust 130-15wall thickness.
Weather sealing:
Sealing all-round the external frame with EPDM flexible seal to keep dust and rain;
Security screen with 304/316 stainless mesh is optional for high quality requirement.
Hardware:
*304 type stainless steel hinges, can be powder coated same as door colour
*Lock hole prepared for spherical lock/lever handlel ock with 60-70mm backset
*Heavy duty commercial grade overhead door closers are optional.
*Panic exist device is optional.

Package
*Economic and popular pallet package for end customers-15sets per pallet, 10 pallets for 20ft container.
*Luxury Cardboard package for distributors-26sets per pallet, 5 pallets for 20ft container.
