Metal door for transportable building

Pre-hung door assembly for transportable buildings *Easy Installation *Save Labor Cost

Metal door for transportable building

UL Certified Fire rated door for Factories &Commercial buildings

Fireproof door is special for commercial buildings or applications which needs fire protecting doors in emergency gate.

UL Certified Fire rated door for Factories &Commercial buildings

Double Steel Door is for Industrial buildings

Double Steel Door is designed to be a better Industrial buildings. Popular choice for warehouse, escape passage, apartment buildings etc.

Double Steel Door is for Industrial buildings

PA Door for Modified Container Houses

Popular choice for applications like transportable buildings, modular house,site office, cabins,warehouses,accommodation, hire buildings etc metal clad buildings

PA Door for Modified Container Houses

Wooden door for Hotels & Rooms

Good choice for Room entrance and Hotel main doors

Wooden door for Hotels & Rooms

Product Show

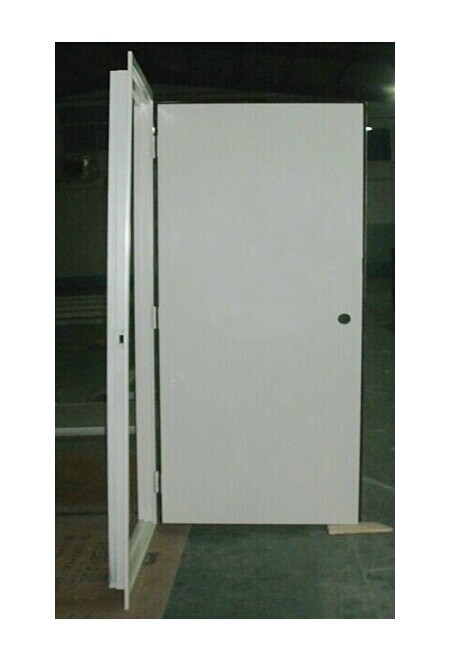

Rebated edge door for Harsh Environment

Product Numbers:CHAM-RD01

Product description:Rebated edge door is designed for Harsh Environment

INTRODUCTION:

Applications
Popular choice for transportable accommodation, modular houses, lunch room and site office etc.

Features
* Pre-hung design save labour cost
* Electrostatic powder coating finish guarantee the quality in harsh environment
* Rebated edge design make door excellent in preventing sand dust and noise, also waterproof and soundproof.
* Timber blocks are fitted inside of door leaf to meet lock, hinges and door closer
* Lock hole prepared

Technical Specifications
*The door assembly is ready for installation into an existing opening.
Door Leaf Size:
Single Door Size (mm) – 2040H x 820/870/920W x 40T
*Customized sizes are available.
Opening Direction:

Reversible design for both right hand & left hand choice.

Door Core:
High quality honeycomb paper/Rock wool
Steel sheet:
Galvanized steel sheet materials with high-quality powdercoating finish
Door Frame:
*. Frame made of 1.5mm thick galvanized steel sheet with fixing holes for prefabricated building

*.  Can be one external frame only or consists of two parts (internal & external frame) to adjust different wall thickness.

*. Disabled threshold is optional.

Weather sealing:
Sealing  Jambs or choosing seal 4 sides of the door leaf flange edge with EPDM flexible seal to keep dust and rain
Hardware:
*304 type heavy stainless steel hinges, can be powder coated same as door colour
*Lock hole prepared for spherical lock/lever handlel ock with 70mm backset
*Heavy duty commercial grade overhead door closers are optional.
*Panic exist device is optional.

Package
*Economic and popular pallet package for end customers-15sets per pallet, 10 pallets for 20ft container.

*Luxury Cardboard package for distributors-26sets per pallet, 5 pallets for 20ft container.
